2-Axis SMART CUBE Level - DWL90Pro

PRECISE & ACCURATE

Offering precise measurement, whose accuracy of ± 0.1° at 0° ~ 1° & ±0.2° at 1° ~ 89°

USER SELF CALIBRATION

Easy self-calibration feature allows user to reset the digital level back to factory preset accuracy.

2-AXIS MEASUREMENT

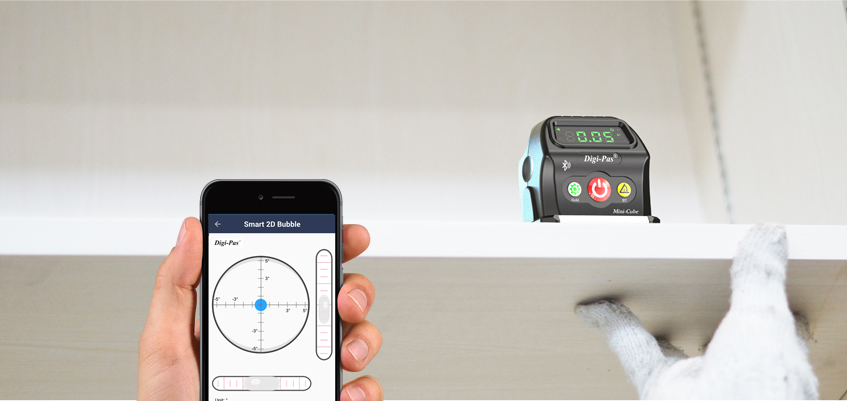

Read both X & Y axis angles SIMULTANEOUSLY using Digi-Pas Smart Levels App.

WIRELESS MEASUREMENT

Convenient Wireless measurements from a distance using Digi-Pas® Smart Levels App; Bluetooth range approx. 100 feet or 30 meters

BUILT-IN MAGNET

Strong magnet can firmly attach to metallic surfaces.

BRIGHT LED DISPLAY

Bright & clear reading display with LED Technology. May simply read from its own LED display if one does not need the app.

Product overview

Specification

  • Measurement Range: 360° (4 x 90°) for X-axis (SINGLE axis); 0 ~ 5° for X&Y (DUAL Axis)
  • Resolution: 0.05°
  • Accuracy: ± 0.1° at 0° ~ 1° & ±0.2° at 1° ~ 89°
  • Wireless measurements using Digi-Pas® Smart Levels App; Bluetooth range approx. 100 feet or 30 meters
  • User-friendly Mobile-based software
  • Operating Temperature : 32°F to 122°F or 0 to +50°C
  • Functional features: Alternate zero, Hold, Auto shut-off, Strong built-in magnet & Bluetooth

Device Features

  • MODE

    Switch angle display between X & Y Axis

  • RESOLUTION

    Measuring resolution of 0.05°

  • MEASURING RANGE

    Measuring range 360° (4 x 90°) for X-axis (SINGLE axis); 0 ~ 5° for X&Y (DUAL Axis)

  • INSTANT UNIT CONVERSION

    Instantly convert measurement unit from °(Degree), mm/M & in/Ft

  • ALTERNATE ZERO SETTING

    Enable user to measure relative angles at a common plane with respect to a reference angle. The reference angle can be set using alternate zero feature

  • BUILT-IN MAGNET

    Strong magnet at the level base enable users to hold to variety of metal surfaces which is useful in many practical applications

  • ABSOLUTE LEVEL SETTING

    Enables user to perform absolute symmetry readings for both "front" & "reverse" (180 degrees) positions of any measurement angle.

  • USER SELF CALIBRATION

    Easy self-calibration feature allows user to reset the digital level back to factory preset accuracy.

Applications

Precision levelling and angle measurement/alignment tasks essentially involve surface planes that demand for 2-dimensional solution rather than the outdated single-axis 'bubble' vial method that indicates 'bubble' leveling status 'one axis at a time'.

Digi-Pas® 2-axis precision digital level simultaneous displays of two-dimensional plane angles, effectively simplifying and resolve the hurdles of taking angles 'one axis at a time' iteration (tedious & time consuming task of trial-and-error) experienced when using those outdated single-axis 'bubble' or traditional digital levels to conduct surface plane levelling, tilt angle measurement, surface flatness profiling and precision 2D alignment tasks.

  • DIY satellite dish aligning has become speedy and effortlessly with Digi-Pas® DWL-90Pro pocket-size digital level. It is used to ensure the mast/pole for the receiver is levelled and the dish is at targeted elevation to optimise satellite signal.
  • Digi-Pas® DWL-90Pro model is used by the therapeutic practitioners to assess rehabilitation progress of patients. Range of motion (ROM) such as flexion & extension movements of hands or legs have been traditionally visual estimated and presently use digital level to measure angular movements and record in numeric values to evaluate improvements.
  • Digi-Pas® DWL-90Pro to assess bone angles deviation during diagnostic stage and orthopedic surgery (note: sterilization of the instrument is required for operating theater environment). The feature of fast response numerical readings of angle enables doctors to perform immediate evaluation and carry out necessary surgical operation.
  • Digi-Pas® DWL-90Pro is used for getting accurate readings on window frames installation.
  • Digi-Pas® DWL-90Pro is used for getting accurate readings on door frames installation.
  • Digi-Pas® DWL-90Pro is used for getting accurate readings on tilted solar Modules installation and inspections
